Stacionarni video nadzor - Verint Nextiva >> Bežični uređaji >> S4100 Wireless Transmitter and Receiver
Osnovne značajke
-

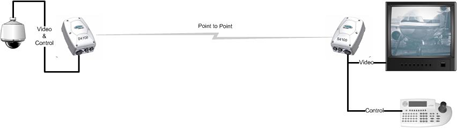

dvije jedinice encoder/transmiter i decoder/reciver
-
odašiljanje preko 2.4 i 5 GHz
-
MPEG-4 bazirani video do 4CIF/30FPS sa optimalnim iskorištenjem propusnosti
-
kompaktno vodootporno kućište, idealno za vanjske primjene
-
ugrađena multi-band antena za softverski kontrolirane promjene frekvencija
-
sve potrebno nalazi se u jednom uređaju, bez potrebe za dodatnim instalacijama
|
RF Interface |
Nextiva SDCF/SPCF
802.11a/802.11g PHY with proprietary MAC protocol |
Frequencies |
2.40-2.4835 GHz (ISM)
4.940-4.990 GHz (Public safety band US and Canada)
5.250-5.350 GHz (U-NII-2) Not available in US & Canada
5.470-5.725 GHz (DFS) Not available in US & Canada
5.725-5.825 GHz (U-NII-3/ISM) |
Modulation |
OFDM |
Maximum
Output Power |
2.4 GHz: 13 dBm
4.9 GHz: 20 dBm
5.x GHz: 23 dBm |
Range
(RF Line of Sight) |
2.40-2.4835 GHz (8.5 dBi): up to 2.1 miles (3.4 km)
4.940-4.990 GHz (12 dBi): up to 2.4 miles (3.9 km)
4.940-4.990 GHz (18 dBi): up to 8.2 miles (13.2 km)
5.250GHz-5.350GHz (12 dBi): up to 1.8 miles (2.9 km)
5.470-5.725GHz (12 dBi): up to 1.7 miles (2.7 km)
5.725-5.825 GHz (12 dBi): up to 2.1 miles (3.4 km)
5.725-5.825 GHz (19 dBi): up to 8.8 miles (14.2 km) |
Data Rate
(Max Burst Rate) |
6, 9, 12, 18, 24, 36, 48, and 54 Mbps |
Channels |
2.4 GHz: 11, 3 non-interfering
4.9 GHz: 2, 4, or 10 depending on user-configurable channel width, non-interfering
5.3 GHz: 4, non-interfering
5.4 GHz: 11, non-interfering (DFS)
5.8 GHz: 5, non-interfering |
Encryption |
128-bit AES with auto-key rotation |
Protocols |
RTP/IP, UDP/IP, TCP/IP |
Antenna
Connector |
SMA female |
Ethernet
Connector |
Weatherproof 10/100Base-T (RJ-45) |
Input/Output |
1 or 2 composite, 1 Vpp into 75 ohms (NTSC/PAL) |
Compression |
Proprietary MPEG-4-based (480 TV lines resolution) MPEG-4 ISO 14496-2 Simple Profile (480 TV lines resolution) |
|
1-30 fps programmable (up to 60 fields per second)
|
Interface Standard |
RS-422/485 |
Operating Mode |
Transparent (supports any asynchronous PTZ serial protocol)
|
Alarm |
Input: 2 dry contacts (1 mA max.)
Output: 1 relay contact (up to 48V at 100 mA) |
Bi-Directional
Audio |
Input: 0 dBm into 600 ohms
Output: -8 dBm into 600 ohms
|
Input Voltage |
24V AC +/- 20% and 12V DC +/- 10% |
Maximum
Consumption |
20W (1.6 A at 12V DC), 25 VA at 24V AC
|
Enclosure |
NEMA 4X/IP 66 powder coat painted die-cast aluminum with wall-mount brackets |
Size |
8.75L x 3.5W x 5.5H in. (222L x 89W x 140H mm) |
Weight |
4.6 lbs (2.1 kg) including mounting brackets |
|
-22oF to 122oF (-30oC to 50oC)
|
|
|
Configuration |
Local via the Ethernet port using SConfigurator |
Firmware Upgrade |
|
|
|
|
FCC CFR47 Part 15 Subpart B, C, and E (15.247, 15.407, 15.107, 15.109)
FCC Part 90 DSRC-C mask certification
UL60950-1, First Edition
|
|
Industry Canada RSS-210, RSS-139, and ICES-003 CSA C22.2 NO. 60950-1, First Edition
|
|
CE marked
ETSI EN 300 328 v1.7.1 (2006-10)
ETSI EN 300 893 v1.3.1 (2005-08)
ETSI EN 301 489-1 v1.7.1 (2007-04)
ETSI EN 301 489-17 v1.3.2 (2007-06)
IEC-60950-1, First Edition
UL60950-1, First Edition
|
S4100 |
Standard model with 2.4/5.x GHz support and audio and alarms capability |
S4100-2V |
Standard model with 2.4/5.x GHz support and a second video input/output |
S4100-49 |
Public safety model with 2.4/4.9/5.x GHz support and audio and alarms capability |
S4100-2V-49 |
Public safety model with 2.4/4.9/5.x GHz support and a second video input/output |
S4100-CE |
European model with 2.4/5.x GHz support and audio and alarms capability |
S4100-2V-CE |
European model with 2.4/5.x GHz support and a second video input/output |
|
|
